System Accessories for Rhenofol Roofing Membranes
Safety and economy: Our range of accessories
With our extensive range of accessories, we want to ensure that you can implement your flat roof project safely and economically. The range of design options extends from optimum layer build-up to detailed design, useful and practical features to the optical refinement of a roof surface. There is a suitable solution for every need.
The accessories for drainage and emergency drainage enable the direct and effective drainage of rainwater.
Protective sheets, separating layers and fleeces of the highest quality are available for optimum layer build-up.
Vapour barriers and sealing tapes provide reliable protection against water vapour and moisture.
A wide range of system accessories for the safe and visually attractive design of flat roofs rounds off the range. Here you will find composite sheets, the FDT roof end profile Vario, vapour pipes, cold roof ventilators, the standing seam profile and the roof colour, the gravel guard made of stainless steel, the pavement slab and the snow guard.
Essential tools for professional, clean roof waterproofing are also FDT adhesives, pastes and cleaners.
We will be happy to advise you on the right product selection.
Roof accessories for Rhenofol CV and CG
Rhenofol connection plate
Rhenofol connection plate
A hot-dip galvanised sheet steel laminated with Rhenofol C with a black protective coating on the reverse. For the production of profiles for connections, terminations and fixings. Can be cut and folded like galvanised sheet metal. For connecting Rhenofol CG and Rhenofol CV roofing membranes.
Rhenofol outer corner 90°
Rhenofol outer corner 90°
Moulded part made of Rhenofol C for waterproofing external corners of Rhenofol roofing membranes.
Rhenofol outer corner for skylight domes
Rhenofol outer corner for skylight domes
Moulded part made of Rhenofol C for sealing skylight dome corners in Rhenofol roofing membranes.
Rhenofol C bearing rings
Rhenofol C bearing rings
For connection to loose fixed flange gullies for Rhenofol roof waterproofing. One set consists of 4 additional rings per gully.
Delivery time on request.
Rhenofol CS
Rhenofol CS
Plastic sheet with slip-resistant embossing on top. As a protective layer for maintenance and traffic routes on Rhenofol roofs.

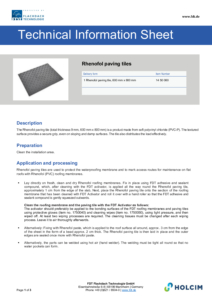

Rhenofol Pavement Slabs
Rhenofol Pavement Slabs
For designing maintenance paths on Rhenofol CV and other PVC roofing membranes. Anti-slip and load-distributing effect. Simple fixing with Rhenofol paste (consumption: approx. 120 g plate) or hot-air welding. Total thickness: 9 mm, 4 mm of which are knob heights.
Rhenofol inside corner 90°
Rhenofol inside corner 90°
Moulded part made of Rhenofol C for waterproofing inner corners of Rhenofol roofing membranes.

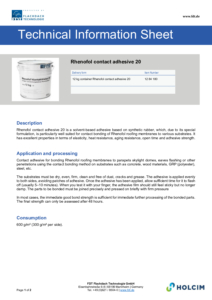

Rhenofol contact adhesive 20
Rhenofol contact adhesive 20
Transparent contact adhesive based on synthetic rubber. For bonding Rhenofol roofing membranes to concrete, wood, polyester, steel, etc. (but not polystyrene). Consumption: approx. 600 gm2 on both sides (300 gm2 per side). Permissible storage time at least 2 years.
Rhenofol Cuff
Rhenofol Cuff
For safe connection of Rhenofol roofing membranes to the FDT VarioGully.
Diameter: 400 mm.
Rhenofol Cuff Loose-Fixed Flange
Rhenofol Cuff Loose-Fixed Flange
For all common drains with screw connections (e.g. 6 holes). Exact information on gully type and manufacturer is absolutely necessary when ordering. Installation only with additional bearing rings and as specified by the respective manufacturer. Delivery time on request.
Rhenofol Cuff Universal
Rhenofol Cuff Universal
Moulded part for installation parts and passages up to 250 mm for Rhenofol CG-CV roofing membranes. Diameter: 340 mm.

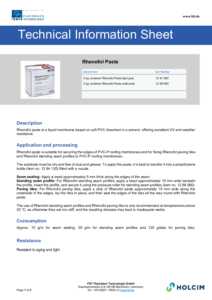

Rhenofol Paste
Rhenofol Paste
Stabilized PVC soft solution. For securing seam edges on Rhenofol roofing membranes (consumption: approx. 10 gm) and for fixing Rhenofol paving slabs (consumption: 120 g slab). Permissible storage time at least 1 year.

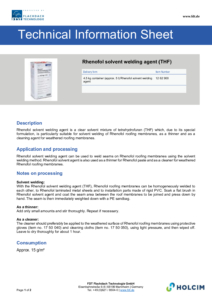

Rhenofol swelling welding agent (THF)
Rhenofol swelling welding agent (THF)
Solvent Tetrahydrofuran (THF). For the seam connection of Rhenofol roofing membranes and as thinner for Rhenofol paste. Consumption: approx. 15 gm. Permissible storage time at least 4 years.

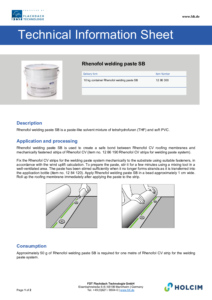

Rhenofol Welding paste SB
Rhenofol Welding paste SB
Rhenofol standing seam profile round
Rhenofol standing seam profile round
For the aesthetic reproduction of standing seams with heights of 25 mm and 50 mm on Rhenofol CV. Required pressure roller for height 25 mm see page 23. Incl. Rhenofol butt connector (1 pc.2m). The length of the standing seam profiles is 2 m.

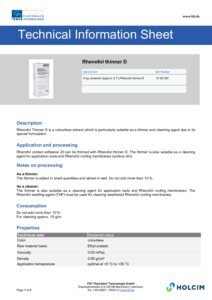

Rhenofol Thinner D
Rhenofol Thinner D
Colourless solvent for Rhenofol contact adhesive 20, Rhepanol primer 1 and 2 and as cleaning agent. Permissible storage time at least 4 years.
Accessories for all FDT roofing membranes
Product information Walkway tiles
Product information Walkway tiles
Product information Gravel stop profile
Product information Gravel stop profile
Product information Roof drainage
Product information Roof drainage
VarioGully technical manual flat roof drainage
VarioGully technical manual flat roof drainage
VarioGully general product information brochure
VarioGully general product information brochure
FDT Cover for WAP economy
FDT Cover for WAP economy
For the optical upgrade of the FDT aluminium wall connection profile Economy. The 2 m long and 0.8 mm thick aluminium cover panel is clicked onto the FDT aluminium wall connection profile and covers it. Colours: anthracite copper brown brown white.
FDT Aluminium wall connection profile, economy
FDT Aluminium wall connection profile, economy
Bending-resistant aluminium rail in perforated 3 m lengths. For fixing Rhepanol and Rhenofol roofing membranes to vertical surfaces. Fixing with 5 pieces per meter, hole diameter: 8 mm, hole spacing: 150 mm.
FDT Connection sleeves
FDT Connection sleeves
FDT Outside corner gravel catching strip
FDT Outside corner gravel catching strip
Stainless steel outer corner for inserting the gravel guard.
FDT External corner step protection profile 200
FDT External corner step protection profile 200
For the execution of a 90° external corner. Bare version with foil. Colour: aluminium-blank
FDT Outside corner Vario 250
FDT Outside corner Vario 250
For forming a 90° external corner on the Vario 250 roof end profile. Side length 375 mm x 375 mm, height 250 mm, made of 1.5 mm aluminium, angle 90°, bare version with foil.
FDT Membrane support Vario
FDT Membrane support Vario
3 m long, extruded aluminium profile for hanging on the holder.
FDT Mounting profile
FDT Mounting profile
Bending-resistant U-profile made of aluminium in perforated 4 m lengths. For edge and intermediate fixing to rising components of Rhepanol and Rhenofol roofing membranes. Profile width: 30 mm, profile height: 6 mm, profile thickness: 2.5 mm, hole spacing: 125 mm, hole diameter: 6.5 mm. Colour: bright aluminium.
FDT Lightning protection passage
FDT Lightning protection passage
For the connection of roofing membranes to lightning protection systems Ø 8 mm and penetrations up to 51 mm diameter for Rhepanol and up to 53 mm for Rhenofol and bitumen. Total height: 250 mm.
- for Rhepanol fk: with cuff made of masking tape grey or black
- for Rhenofol: directly on flange
- for bitumen: with sleeve made of bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: directly on flange
FDT Fire protection collar
FDT Fire protection collar
For fire protection bulkheading in buildings to DIN 18234. Fire resistance class F 90 or R 90. FDT fire protection collars must be arranged on both sides of wall penetrations.
Design for:
- Pipes DNOD 100110
- Sleeve DNOD 100110
- Pipes DNOD 125125
- Sleeve DNOD 125125
- Pipes DNOD 150160
- Sleeve DNOD 150160
FDT VarioGully and FDT vapour tube on thermal insulation sleeve
FDT Roof edging profile Vario 250
FDT Roof edging profile Vario 250
Consisting of FDT holder Vario 250, FDT track support Vario, FDT drag plate Vario and FDT screen Vario 250. Screen height: 250 mm. Bare version with foil. Special colours for fascias and corners are possible according to any RAL colour. Additional costs and delivery times on request.
FDT Roofing membrane adhesive
FDT Roofing membrane adhesive
FDT Vapour barrier Alu-gv-sk
FDT Vapour barrier Alu-gv-sk
Fabric-reinforced and self-adhesive aluminium composite foil to DIN 18234. sd > 1,500 m (practically vapour-tight). Fire class B2 or class E.
FDT Vapour barrier Rhepanol
FDT Vapour barrier Rhepanol
Polyethylene film with sd > 160 m. In loosely laid or mechanically fastened layered structures with Rhepanol roofing membranes for non-air-conditioned lounges in accordance with DIN 4108, Part 3. Fire class B2 or class E.
FDT Vapour barrier PE
FDT Vapour barrier PE
Fabric-reinforced and self-adhesive aluminium composite foil to DIN 18234. sd > 1,500 m (practically vapour-tight). Fire class B2 or class E.
FDT Sealing ring oval
FDT Sealing ring oval
For backflow-proof connection of the sleeve underneath the screw ring.
FDT Sealing compound A
FDT Sealing compound A
Solvent-free, one-component sealing compound based on acrylate. For connections with wall connection profile and Rhenofol on skylight domes. Consumption: approx. 50 mlm. Permissible storage time at least 1 year.
FDT Sealing compound S
FDT Sealing compound S
One-component sealing compound based on synthetic rubber. For connections with wall connection profile. Consumption: approx. 50 mlm. Permissible storage time at least 1 year.
FDT Vapor duct DN 125DN 100
FDT Vapor duct DN 125DN 100
With the enclosed DN 125100, OD 125110 reducer, connection to the fan pipe with DNOD 100110 is possible. Made of high impact PVC hard. With removable cover and support ring. Ready to install with integrated sleeve for connection to the roofing membrane. Body: grey. Ventilation cross-section: with DNOD6 100110 = approx. 88 cm2, with DNOD 125125 = approx. 114 cm2
Required ceiling opening: Ø 190 mm. For insulation thicknesses of 200 mm and 400 mm.
- for Rhepanol fk: cover strip grey or black
- for Rhenofol: Rhenofol C light grey
- for bitumen: bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: Rhepanol h grey
FDT Extractor hood
FDT Extractor hood
Made of high impact PVC hard. In conjunction with FDT extractor pipe DN 125DN 100, FDT cold roof ventilator DN 125. For pipe diameter DN 125.
FDT End cap Vario 250 left
FDT End cap Vario 250 left
For the optically beautiful glare of the visible aperture. For attaching to the panel.
FDT Holder and clamps for Rhepanol fk
FDT Holder and clamps for Rhepanol fk
FDT Holder and clamps for Rhepanol hfk / hfk-sk / hg / fk-sr and Rhenofol CG
FDT Holder and clamps for Rhepanol hfk / hg / fk-sr and Rhenofol CG
FDT Holder Vario 250
FDT Holder Vario 250
Height and angle of inclination adjustable with automatic lock.
FDT Inside corner gravel trap strip
FDT Inside corner gravel trap strip
Stainless steel inner corner for inserting the gravel guard.
FDT Inner corner step protection profile 200
FDT Inner corner step protection profile 200
For the execution of a 90° internal corner. Bare version with foil. Colour: aluminium-blank
FDT Inside corner Vario 250
FDT Inside corner Vario 250
For forming a 90° inner corner on the Vario 250 roof edge profile. Side length 375 mm x 375 mm, height 250 mm, made of 1.5 mm aluminium, angle 90°, bare version with foil.
FDT Cold roof ventilator DN 125
FDT Cold roof ventilator DN 125
Made of high impact PVC hard. Ventilation cross-section of 114 cm2. The FDT weather cap attached to the FDT extractor hood can be removed for maintenance purposes. Ready to install with integrated sleeve. For bitumen membranes with collar 500 x 500 mm made of bitumen compatible synthetic roofing membrane, which can be worked on directly.
Body: grey. Height of condensate tray: 14 cm.
- for Rhepanol fk: masking tape grey or black
- for Rhenofol: Rhenofol C light grey
- for bitumen: bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: Rhepanol h grey
FDT Gravel leaf trap
FDT Gravel leaf trap
Gravel foliage trap for FDT VarioGully.
FDT Gravel catching strip
FDT Gravel catching strip
FDT Gravel trap strip package
FDT Gravel trap strip package
Stainless steel gravel guard. The FDT holders are fastened to the corresponding waterproofing with a piece of Rhepanol hg or Rhenofol roofing membrane. The Rhepanol holders with collar in the sealing edge system are laid directly on Rhepanol fk and screwed to the substructure. The clamp is made of stainless steel and serves as a butt connector and to reinforce the gravel guard strip above the holder. If the roof pitch is more than 5°, the design must be agreed with our application engineers.
FDT Adhesive U
FDT Adhesive U
Liquid, one-component, solvent- and CFC-free polyurethane adhesive. For stripwise bonding of thermal insulation materials and bitumen membranes (vapour barriers).
Permissible storage time 1 year.
FDT Glue trolley universal
FDT Glue trolley universal
FDT Glue applicator 1 m
FDT Glue applicator 1 m
FDT Plastic fleece 180 g/m²
FDT Plastic fleece 180 g/m²
Highly tear-resistant and thermally bonded, drill-proof.
Levelling layer for old, uneven bitumen roofs and wooden formwork as well as a separating layer between building protection mats and Rhepanol roofing membranes.
FDT Plastic fleece 300 g/m²
FDT Plastic fleece 300 g/m²
Highly tear-resistant and thermally bonded, resistant to drilling and alkali. For layered structures with Rhepanol as protective layer.
FDT Leaf catching basket
FDT Leaf catching basket
The leaf trap is suitable for all RWE and is adapted to the respective diameter by cutting the centering to size. Also suitable for all waterspouts by cutting the basket to size.
FDT Liftring
FDT Liftring
Per additional FDT Liftring the installation height of the terrace attachment can be raised by 36mm.
FDT Lip seal
FDT Lip seal
The lip seals are suitable for backwater-proof installation of RWE among each other or for installation directly in downpipes or old gullies.
- for RWE 95 100110
- for RWE 95 125125
- for RWE 125 150160
- for RWE 160 200200
FDT Cuffs for FDT VarioGully
FDT Cuffs for FDT VarioGully
For safe connection of the roofing membranes to the FDT VarioGully. Version for bitumen vapour barrier and roofing membranes in polymer bitumen. With Rhepanol f collar incl. Rhepanol Velcro ring.
Version for Rhepanol fk:
- Rhepanol f grey or black Ø 400
- for Rhenofol: Rhenofol C light grey Ø 400
- for bitumen: bitumen sheets black Ø 500
FDT Seam tape
FDT Seam tape
Butyl adhesive, thread-reinforced. Seam joint of the FDT vapour barrier fk between each other, within the overlap. Meets the requirements of DIN 18234-1.
FDT Emergency overflow
FDT Emergency overflow
Horizontal emergency drainage from the flat roof through the roof edge or parapet. Further connection to a pipe system for water drainage to suitable open areas or via a free jet.
Notes on processing:
All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol emergency overflow (PP) in accordance with the installation instructions. Alternatively, FPOTPO (PP) and bitumen membranes can also be connected.
All Rhenofol roofing membranes can be connected to the Rhenofol emergency overflow (PVC) in accordance with the installation instructions. Alternatively, PVCEVA roofing membranes can also be connected.
Dimensions: Ø 75, Ø 110, 200 x 100, 300 x 100, 450 x 100, 600 x 100, 800 x 100, 1000 x 100, special type
FDT Emergency overflow plus
FDT Emergency overflow plus
With extremely high drainage capacity or small nozzle width. The Rhepanol emergency overflow plus consists of PP and the Rhenofol emergency overflow plus of PVC. Special type
FDT Emergency overflow nozzle for FDT VarioGully
FDT Emergency overflow nozzle for FDT VarioGully
This allows simple conversion of all FDT VarioGullies for use as emergency overflows. The accumulation height can be adjusted to the millimetre.
Accumulation heights:
- 20-50 mm accumulation
- 20-110 mm accumulation
FDT Reducer, DN 12570 eccentric, black
FDT Reducer, DN 12570 eccentric, black
FDT Rainwater inlet
FDT Rainwater inlet
Drainage vertically through the roof package.
Connection
All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol-RWE (PP) according to the installation instructions. Alternatively, FPOTPO (PP) and bitumen membranes can also be connected. All Rhenofol roofing membranes can be connected to Rhenofol-RWE (PVC) according to the installation instructions. Alternatively, PVCEVA roofing membranes can also be connected.
Outside Ø pipe: 50 mm, 56 mm, 63 mm, 75 mm, 95 mm, 110 mm, 125 mm, 140 mm, 160 mm
FDT Raw glass fleece 120 g/m²
FDT Raw glass fleece 120 g/m²
Chemically bonded glass fibre fleece. As a separating layer against interactions between Rhenofol roofing membranes and incompatible materials, such as polystyrene hard foam panels, and as a fire protection layer in mechanically fastened layer structures with Rhenofol and Rhepanol hfk roofing membranes.
FDT Rolling ring
FDT Rolling ring
For all FDT VarioGully types.
FDT Renovation vapour pipe DN 100
FDT Renovation vapour pipe DN 100
Made of high impact PVC hard. With removable hood and ready-to-install, integrated sleeve for connection to the roofing membrane. For flush connection of the roof sealing to a sawn-off ventilation pipe DNOD 100110 during roof renovation. Body: grey.
- for Rhepanol fk: cover strip grey or black
- for Rhenofol: Rhenofol C light grey
- for bitumen: bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: Rhepanol h grey
FDT Hose connection
FDT Hose connection
Made of polypropylene. Nominal size DNOD 100110. Flexible connection to the exhaust pipe. Length of bellows: 200 to 500 mm.
FDT Trailing plate Vario
FDT Trailing plate Vario
3 m long, 0.21 m wide, 1.5 mm thick, edged and perforated aluminium sheet for hanging in the membrane support and fixing in the substrate. Serves as a support for the flashing membrane and as an edge fixation for the roofing membrane. Hole spacing: 200 mm, hole diameter: 6 mm.
FDT Snow guard holder
FDT Snow guard holder
FDT Snow guard holder as basic element for snow protection systems from Braas. Incl. the required fasteners (10 pcs.). Demand is determined by FDT.
Suitable substrates: – Wood-based materials, min. 22 mm thick – Steel trapezoidal sheet, 0.88 mm thick with thermal insulation (excluding Megarock)
The holder can be combined with – snow guard support Braas-Art.: 5556003) – alpine support (two-pipe system) Braas-Art.: 5190003) – Uni log holder Braas-Art.: 5558003)
FDT Screwdriving aid
FDT Screwdriving aid
Tool for easy and safe assembly of the screw ring on the FDT VarioGully.
FDT Screw ring
FDT Screw ring
For all VarioGully types.
FDT Protective membrane
FDT Protective membrane
Plastic sheet made of PIB, with polyester fleece underneath as highly perforation-resistant protective layer, with fleece-free welding edge.
FDT Sleeves for penetrations
FDT Sleeves for penetrations
Prefabricated sleeves for watertight connection of the roofing membranes can be used on round and square penetrations such as guardrails, railings, pipes, etc. The floor sleeves have a diameter of 210-350 mm for round penetrations and 300 x 300 mm for square penetrations.
FDT Support frame
FDT Support frame
For the connection of the roofing membrane to supports and securants from 14 mm to 50 mm diameter with stainless steel clamp for diameters 14 to 16 mm. Flange diameter: 160 mm. Height: 15 cm.
- for Rhepanol fk: with cuff made of masking tape grey or black
- for Rhenofol: directly on flange
- for bitumen: with sleeve made of bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: directly on flange
FDT Terrace attachment
FDT Terrace attachment
Made of aluminium, consisting of lift ring and spacer ring. For the construction of flat roofs with slab coverings and inverted roofs. The installation height of 67 to 90 mm can be adapted to the terrace structure in 3 mm increments. Additional FDT lift rings are required from a covering height of 90 mm. Dimensions 195 x 195 mm for 200 x 200 mm pitch.
FDT Step protection profile 200 one-piece
FDT Step protection profile 200 one-piece
For fixing and protecting roofing membranes on rising building components on terraces and balconies. Bending resistant, 3 m long, 200 mm high and 1.5 mm thick perforated aluminium rail. Bare version with foil. Fixing 5 pieces per meter, hole diameter: 7 mm. Colour: aluminium-blank
FDT Universal border
FDT Universal border
For the connection of the roofing membrane to supports and securants from 14 mm to 48 mm diameter. Flange diameter: 200 mm. Height: Universal from 150 mm to 300 mm.
- for Rhepanol fk: with cuff made of grey or black masking tape.
- for Rhenofol: directly on flange
- for bitumen: with sleeve made of bitumen compatible synthetic roofing membrane anthracite
- for Rhepanol hfk hfk-sk hg fk-sr: directly on flange
FDT VarioGully renovation flange
FDT VarioGully renovation flange
For old roof gullies from min. 137 mm to max. 210 mm, screws and sealing cord included as standard. Only in conjunction with additional insulation ≥ 50 mm.
FDT VarioGully warm roof attachment
FDT VarioGully warm roof attachment
Fits all VarioGully base bodies. For extension on single-shell, non-ventilated roof (warm roof).
Various sizes:
- for insulation thicknesses from 50 mm to 200 mm
- for insulation thicknesses from 50 mm to 400 mm
- for insulation thicknesses > 400 mm as special design
FDT VarioGully, angled DN 125
FDT VarioGully, angled DN 125
Height 195 mm.
FDT VarioGully, angled DN 125, heatable
FDT VarioGully, angled DN 125, heatable
Height 195 mm.
FDT VarioGully, angled DN 70DN 100, heatable
FDT VarioGully, angled DN 70DN 100, heatable
Height 110 mm. Drainage capacity corresponds to DN 70 or DN 100 using the enclosed transition piece (DN 70100).
FDT VarioGully, vertical DN 125DN 100
FDT VarioGully, vertical DN 125DN 100
Reducer DN 125100 included as standard. Drainage capacity corresponds to DN 125 or DN 100 using the enclosed reducer (DN 125100).
FDT VarioGully, vertical DN 125DN 100, heatable
FDT VarioGully, vertical DN 125DN 100, heatable
Reducer DN 125100 included as standard. Drainage capacity corresponds to DN 125 or DN 100 using the enclosed reducer (DN 125100).
FDT VarioGully, vertical DN 150 (OD 160)
FDT VarioGully, vertical DN 150 (OD 160)
FDT VarioGully, vertical, heatable DN 150 (OD 160)
FDT VarioGully, vertical, heatable DN 150 (OD 160)
FDT connector Vario 250
FDT connector Vario 250
For the optically beautiful glare of the visible aperture. For attaching to the panel.
FDT Connecting tape
FDT Connecting tape
Special adhesive on carrier foil. Seam connection of the FDT vapour barrier fk as well as for connections on different substrates.
FDT Heat shrink tubing
FDT Heat shrink tubing
FDT Gargoyles
FDT Gargoyles
The FDT Waterspout is a horizontal drainage system for flat roofs. With two design variants material PVC and PP. All unlaminated Rhepanol roofing membranes can be connected to the Rhepanol waterspout (PP) according to the installation instructions. Alternatively, FPOTPO (PP) and bitumen membranes can also be connected. All Rhenofol roofing membranes can be connected to the Rhenofol waterspout (PVC) according to the installation instructions. Alternatively, PVCEVA roofing membranes can also be connected.
FDT Weather cap DN 125
FDT Weather cap DN 125
Made of high impact PVC hard. In conjunction with the FDT extractor pipe DN 125 DN 100, FDT cold roof ventilator DN 125 for rainproof connection with room ventilation. As spare part for cold roof ventilator DN 125 can only be attached in connection with the FDT extractor hood.
Customer Service
We will be happy to advise you personally on our products or answer your questions on specific problems. Give us a call:
We are open please call us: +49 (0) 621 8504-100
We are there for you:
Monday to Thursday : 8.00 am – 4.00 pm
Freitag : 8.00 am – 2.00 pm
